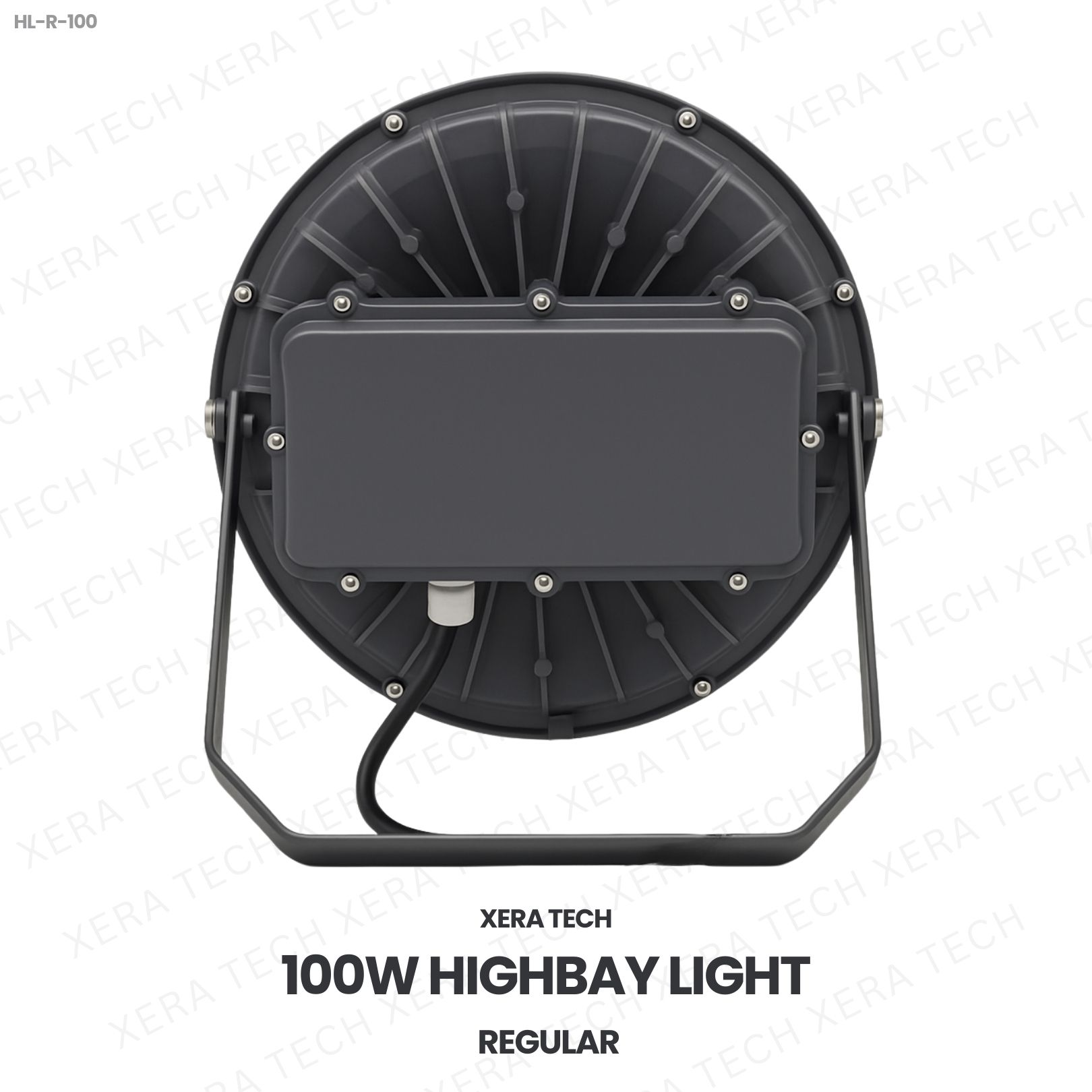

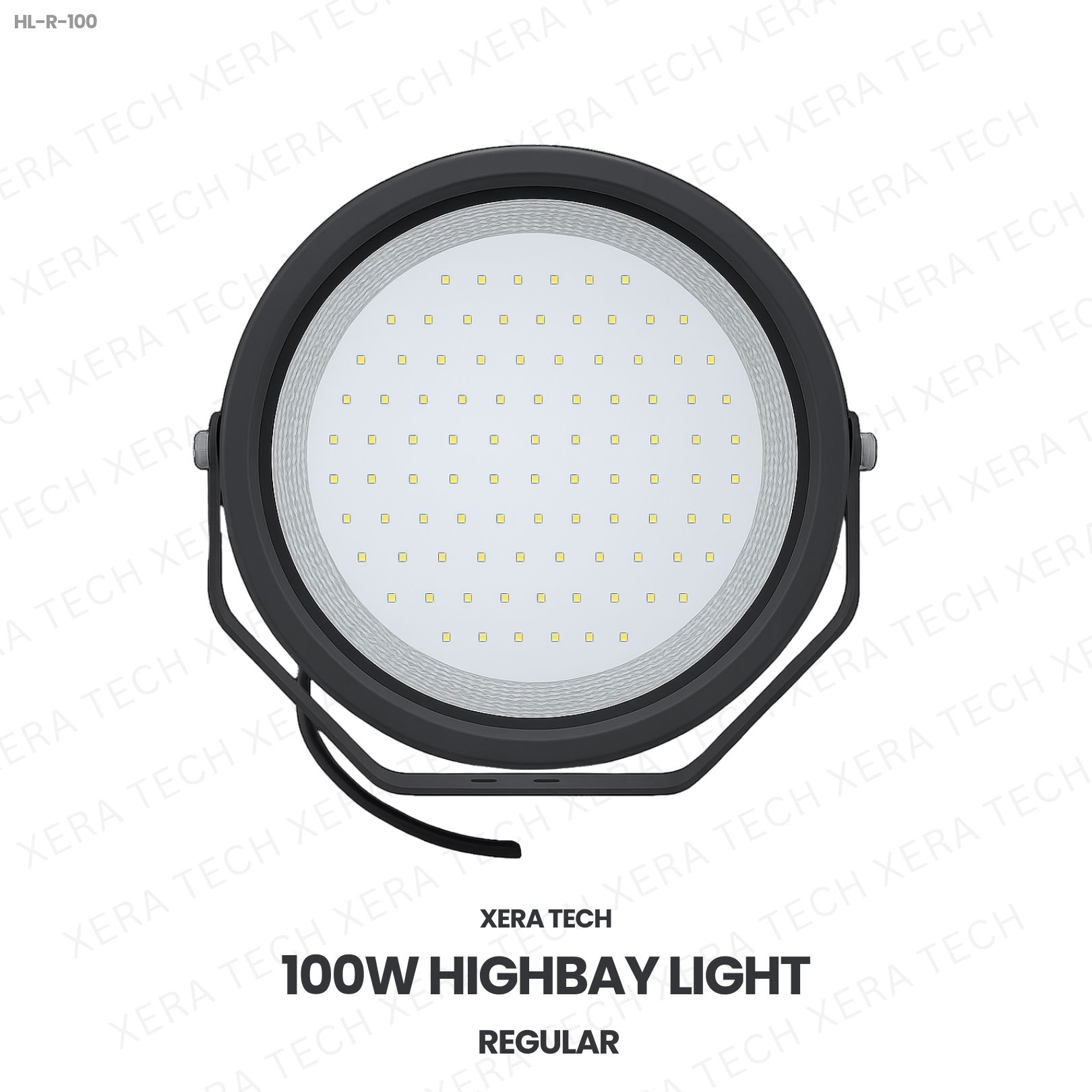

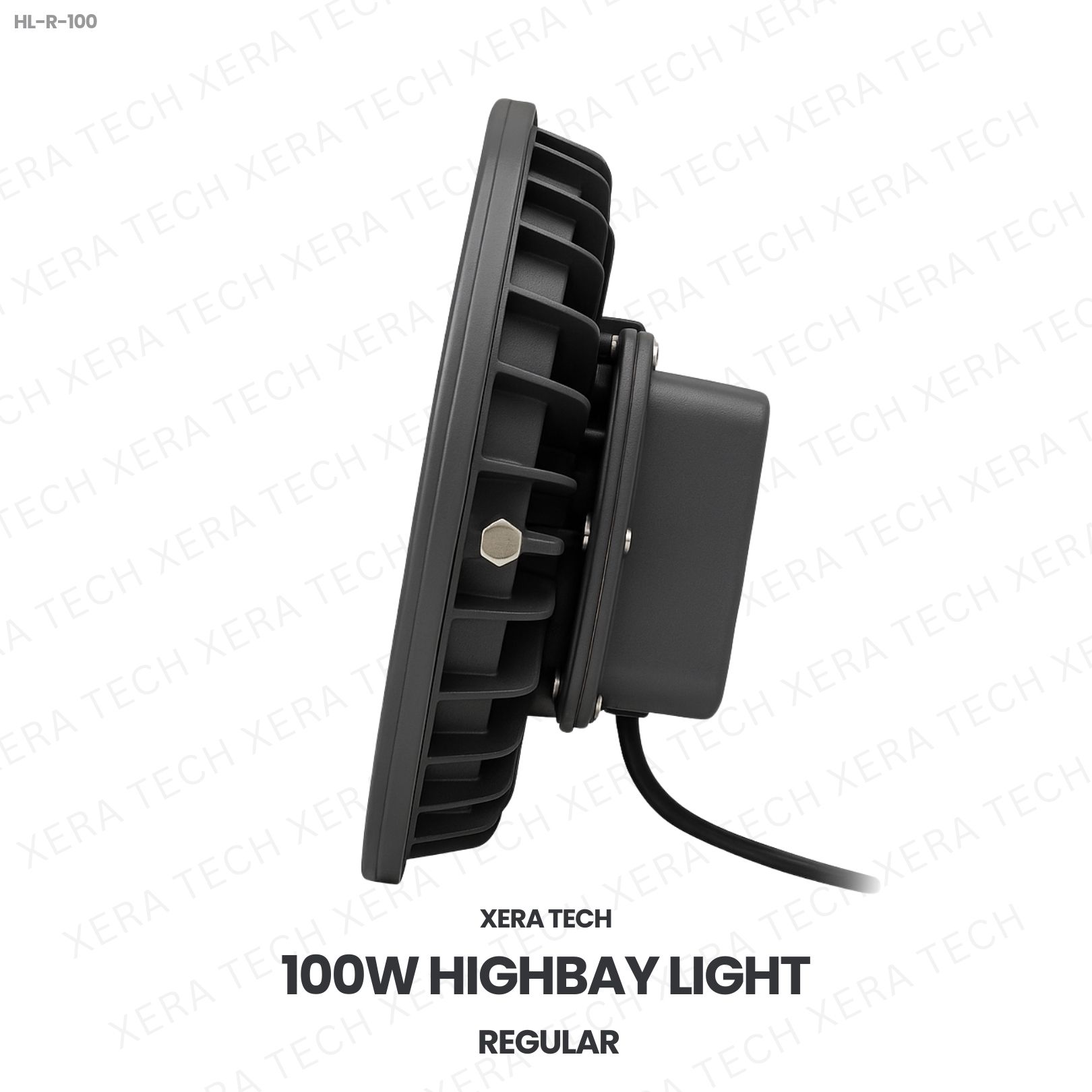

100W Highbay Light Regular
HL-R-100 IP66 120° CRI ≥ 80
Excl. GST | Min. 2 units | In stock: 1,000 units
Min. 2 units
Key Highlights
Why Choose the 100W Highbay Light
Electricity Saving Calculator
See how much you save by switching to the 100W LED Highbay Light from traditional halogen or sodium vapour lights.
Down Choke vs Back Choke Flood Light – Which to Choose?
Xera Tech offers Highbay Light in two driver configurations — Down Choke (driver faces downward) and Back Choke (driver at rear). Understanding the difference helps you pick the right model for your application.
| Feature | Down Choke This Model | Back Choke |
|---|---|---|
| Driver Position | Driver faces downward / outward | Driver sits behind the fixture body |
| Heat Dissipation | ✓ Better — gravity-aided airflow, driver stays cooler | Adequate for normal ambient temperatures |
| Best For | High-temperature zones, industrial sites, harsh outdoors, long-run hours | Facade lighting, architectural use, moderate-duty outdoor |
| Maintenance | ✓ Easier — driver accessible without dismounting | Requires removal from mounting for driver access |
| Profile | Slightly bulkier profile due to downward driver | Slimmer — preferred for aesthetic installations |
| Driver Lifespan | ✓ Longer — cooler driver = extended component life | Standard lifespan |
| IP Rating | Both models rated IP66 | |
| Recommended For | Factories, warehouses, highways, stadium surrounds, solar applications, 24-hr use | Building façades, parks, gardens, decorative outdoor, residential |
Glass Model vs Lens Model – Key Differences
| Feature | Glass Model This Model | Lens Model |
|---|---|---|
| Cover Material | Toughened borosilicate glass | Polycarbonate / PMMA lens |
| UV Resistance | ✓ Excellent — no yellowing or fogging over time | Good, but may degrade slightly over 5+ years |
| Chemical Resistance | ✓ Superior — resistant to acids, solvents, industrial fumes | Moderate resistance |
| Light Transmission | ~92% (flat even distribution) | ~94% (precise beam shaping) |
| Impact Resistance | High (toughened glass) | Higher (polycarbonate is flexible) |
| Best For | Industrial, chemical plants, outdoor roads, solar systems, long-term installs | Sports courts, accent/display lighting, precise angle requirements |
| Maintenance | Easy to clean, no static charge | Lens may attract dust via static |
Product Description
The 100W Highbay Light Regular is a 100W LED Highbay Light manufactured by Xera Tech in Nashik, Maharashtra. Designed for demanding outdoor and industrial environments, this IP66 flood light combines the driver-down choke configuration for superior heat management with a toughened glass cover for long-term optical clarity and chemical resistance — making it one of the most durable outdoor flood lights available in India.
Powered by 90% efficient LEDs with a rated life of 50,000 hr, this 100W outdoor flood light delivers a 120° beam angle and CRI of ≥ 80 — ensuring excellent colour rendering for streets, warehouses, facades, and industrial campuses. The Aluminium Die cast housing provides structural rigidity and efficient heat sinking, critical for continuous-duty outdoor installations.
Operating on a wide input of 90V – 300V AC at 50Hz, with built-in 6kV surge protection and a power factor of ≥ 0.95, this IP66 flood light is purpose-engineered for Indian grid conditions — including rural areas with frequent voltage fluctuations and load-shedding. Operating temperature range: -20°C to 50°C.
Certified BIS, RoHS, ISO 9001, CE, the 100W Highbay Light Regular is pre-qualified for government tenders, municipal infrastructure bids, and private industrial procurement across India. Applications include: Outdoor Lighting, Industrial Lighting, Solar Lighting, Campus, Streets, Highways, Factories.
As a leading LED flood light manufacturer in Nashik, Maharashtra, Xera Tech supplies this product pan-India with 2 Years manufacturer warranty and 7 days return policy (HSN: 9405 40 90). The Isolated driver also carries a 2 Years warranty, ensuring your total cost of ownership remains predictable over the fixture's lifetime.
Full Technical Specifications
| Brand | Xera Tech |
| SKU / Model | HL-R-100 |
| Wattage | 100W |
| LED Efficiency | 90% |
| LED Life | 50,000 hr |
| CRI | ≥ 80 |
| Beam Angle | 120° |
| IP Rating | IP66 |
| Housing | Aluminium Die cast |
| Driver Type | Isolated |
| Driver Efficiency | 90% |
| Power Factor | ≥ 0.95 |
| Voltage Range | 90V – 300V AC |
| Frequency | 50Hz |
| Surge Protection | 6kV |
| Operating Temp. | -20°C to 50°C |
| Dimensions (H×W×D) | 230mm × 230mm × 115mm |
| Package Dims. | 250mm × 250mm × 135mm |
| Weight | 1,800g |
| Mounting Pipe ID | Standard |
| Body Colour | White |
| Colour Variants | Cool White,Natural White,Warm White |
| Warranty | 2 Years |
| Driver Life | 2 Years |
| Application | Outdoor Lighting, Industrial Lighting, Solar Lighting, Campus, Streets, Highways, Factories |
| Certifications | BIS, RoHS, ISO 9001, CE |
| Customer Segment | Municipal Bodies, Government Tenders, Factories, Warehouses, Commercial Buildings, Housing Societies |
| Min. Order Qty | 2 units |
| HSN Code | 9405 40 90 |
| Return Policy | 7 days |
Key Features
Certifications
Applications
How to Install the 100W Highbay Light Regular
Complete installation guide for the 100W Highbay Light (Regular, Regular). Required supplies: Light , Aluminium Armoured Cable, Cable, DP MCB, DWC Pipe, Earthing Pipe & Wire, Feeder Panel , FRP Box, MSB.
Frequently Asked Questions about 100W LED Highbay Light
Customer Reviews
Excellent build quality, very bright. Installed 20 units on our campus road — functioning perfectly after 6 months. IP66 confirmed — no water ingress during heavy rains.
IP66 held up well during Pune monsoon. Good value for the price. The Down Choke design clearly runs cooler than our older back choke lights.
Similar Highbay Light Products
Recent Highbay Light Installations
Xera Tech has deployed 100W LED Highbay Light products across Maharashtra and pan-India — Nashik, Pune, Mumbai, Thane, Aurangabad, Kolhapur & more.
Aandhra Pradesh Nandiyal
Pimpalgaon
Raigad
Nandurbar
Dehu Road
Nashik
Product Video – 100W Highbay Light Regular
Buy 100W LED Highbay Light from Nashik, India
Looking to buy 100W LED Highbay Light online in India? The 100W Highbay Light Regular is available at ₹2,550 (MRP ₹2,810) with pan-India delivery from our warehouse in Nashik, Maharashtra. Xera Tech is a MIDC-based LED lighting manufacturer supplying outdoor flood lights, street lights, high bay lights, and solar lights to government bodies, contractors, municipalities, factories and housing societies across India.
Our 100W Highbay Light range is available in multiple configurations: Down Choke (this model) and Back Choke; in Glass Model and Lens Model cover options; and in wattages from 20W to 500W to suit every project scale. All models carry BIS, RoHS, ISO 9001, CE certification and are pre-qualified for government tenders.
For bulk pricing, project quotations, or dealer/distributor inquiries for Highbay Light in Nashik, Maharashtra, or pan-India — call +91-9607908423 or email connect@xeratech.in. Our technical team provides pre-purchase consultation, lumen calculations, and project-specific recommendations at no cost.
